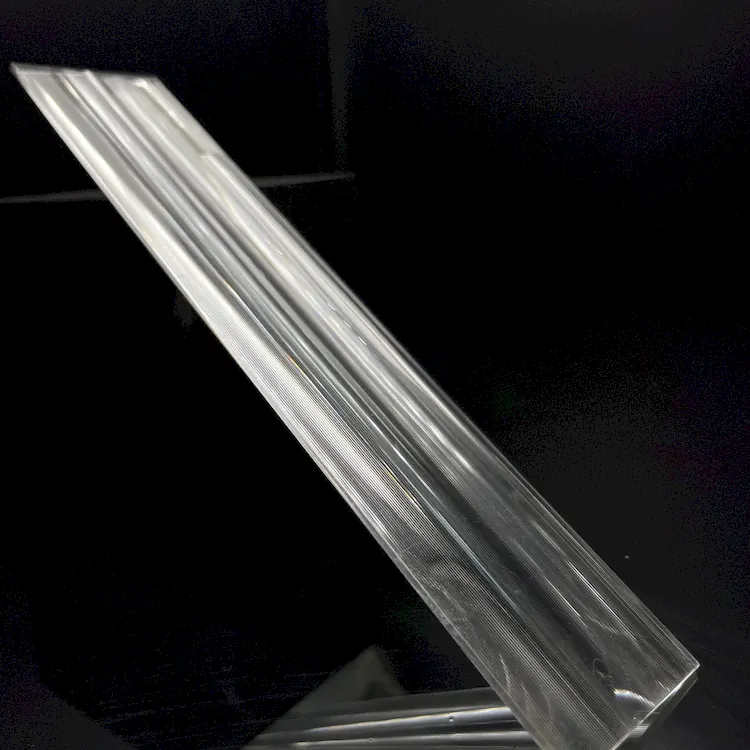

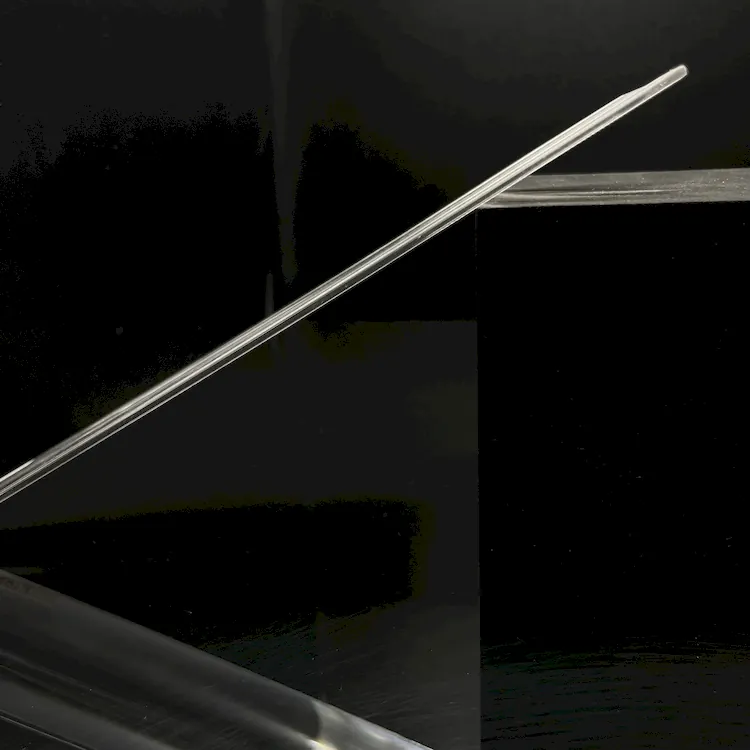

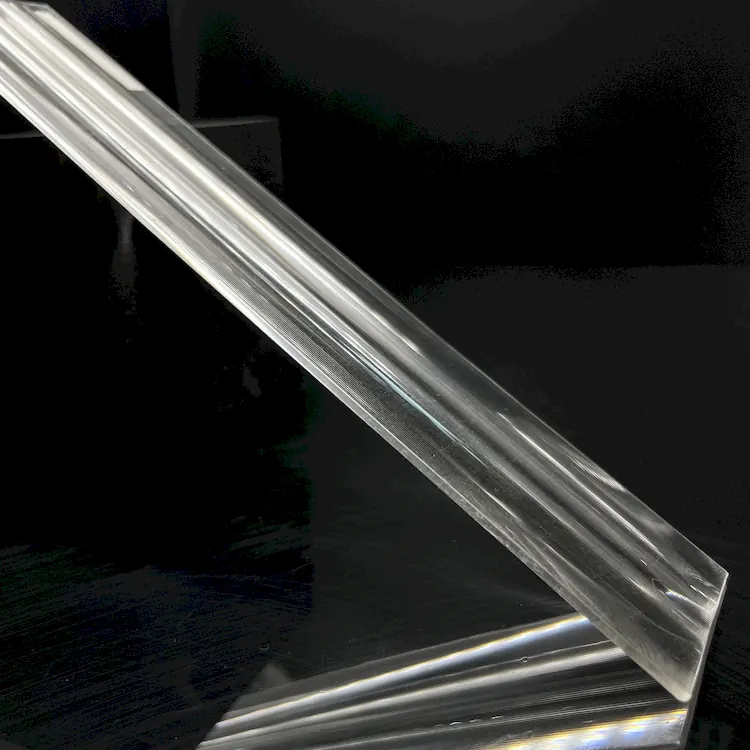

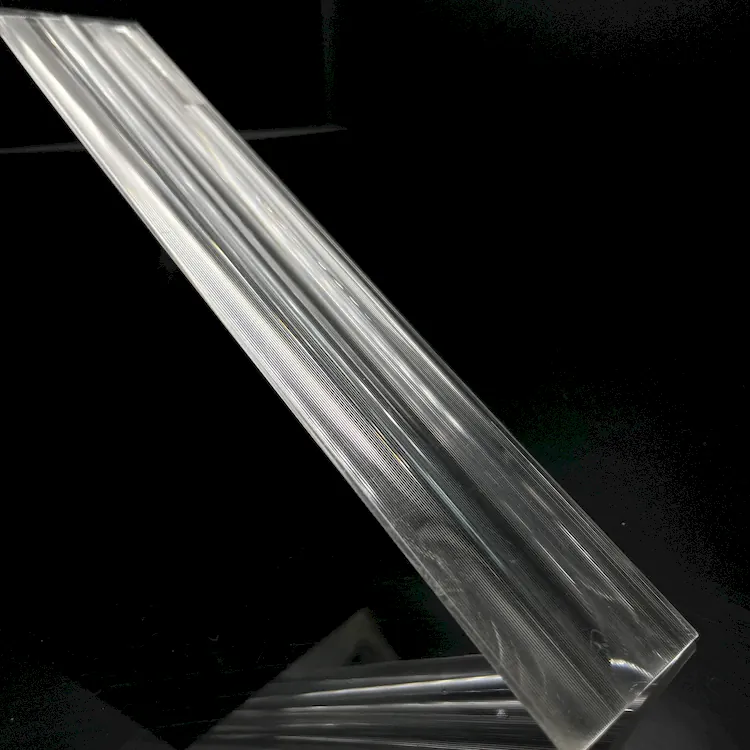

Fresnel Lens Factory Direct Supply F.120mm

Specification

[Product Name] Linear Fresnel Lens

[Brand] Yuying
[Material] Optical-grade PMMA (customizable)
[Dimension] 250x100mm (within 600x100mm any size can be cut)
[Focal Length] 120mm

[Thickness] 2mm

[Groove Pitch] 0.5mm

[Customized] Dimension, Shape, Focal Length, Groove Pitch

[Application] Solar Thermal Systems / LED Linear Lighting Systems

Request a Quote

Quality Control Fresnel Lens Factory Direct Supply | 120mm Focal Length PMMA 250×100mm for LED Linear Lighting Systems


Engineered as an optical solution for high-efficiency LED linear lighting and next-generation illumination systems.


This linear Fresnel lens is designed for LED linear lighting systems, providing precise light distribution and enhanced illumination efficiency. Manufactured from high-transmittance PMMA under strict quality control, it ensures consistent optical performance and durability. Ideal for commercial and industrial lighting applications, with full customization available for OEM projects.


Principle & Advantages

Under sunlight, the linear Fresnel lens focuses light into a narrow line, making it ideal for CSP (Concentrating Solar Power) systems. It concentrates sunlight onto a heat transfer tube, which transfers thermal energy to a heat storage system, ultimately enabling solar power generation.


Main Uses


  • Linear solar heat collection
  • Optical viewfinder systems
  • Barcode scanning and recognition





Advantages

  • High solar concentration efficiency for CSP systems
  • Uniform light distribution for thermal stability
  • Lightweight PMMA for large-area deployment
  • Custom dimensions for project-specific solar layouts


Fresnel Lens vs Traditional Diffuser in LED Lighting


  • Better light control and direction
  • Higher efficiency with less energy loss
  • Lightweight and cost-effective

Specifications & Customization

We provide a wide range of sizes and focal lengths for linear Fresnel lenses, cylindrical lenses, and polarizers. We also offer custom design and manufacturing services tailored to specific project requirements.


Q1: What is a Fresnel lens used for in LED lighting systems?


A Fresnel lens helps control and distribute light efficiently, improving illumination uniformity and reducing glare.

Q2: Why choose PMMA Fresnel lenses for LED lighting?


PMMA offers high light transmission, durability, and cost efficiency for large-scale lighting applications.





Application


  • LED Linear Lighting
  • Architectural Lighting
  • Industrial Lighting Systems
  • Commercial Lighting Fixtures


For technical datasheets or custom orders, please feel free to contact us!
