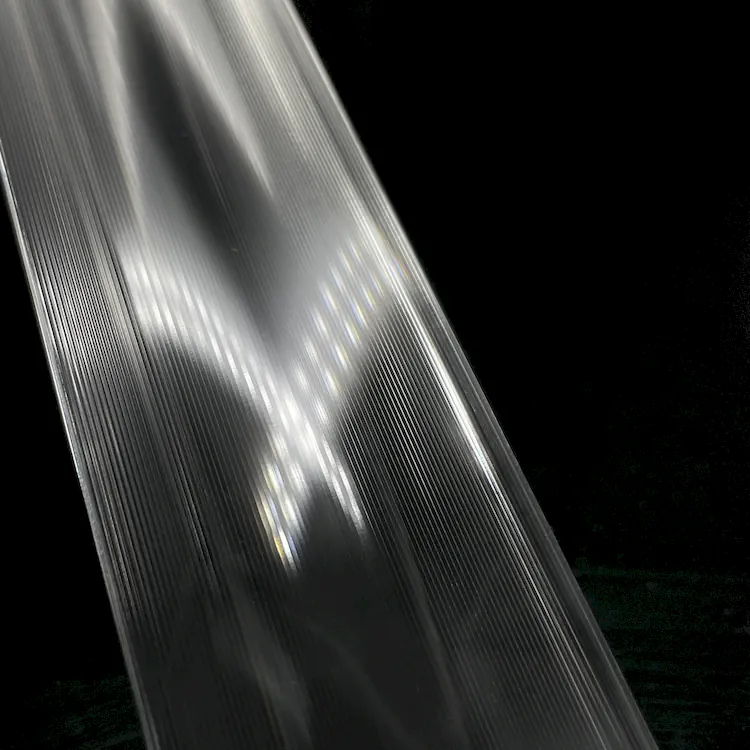

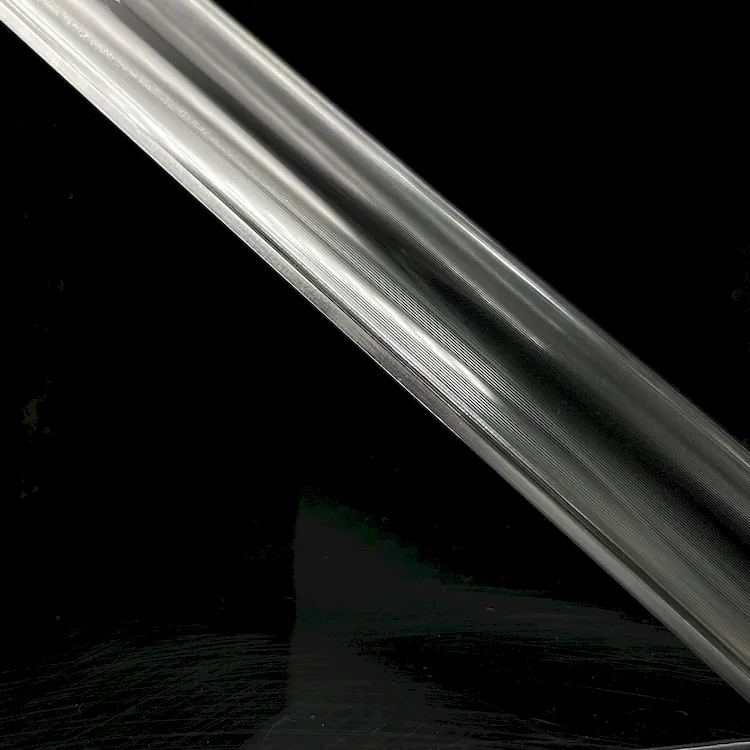

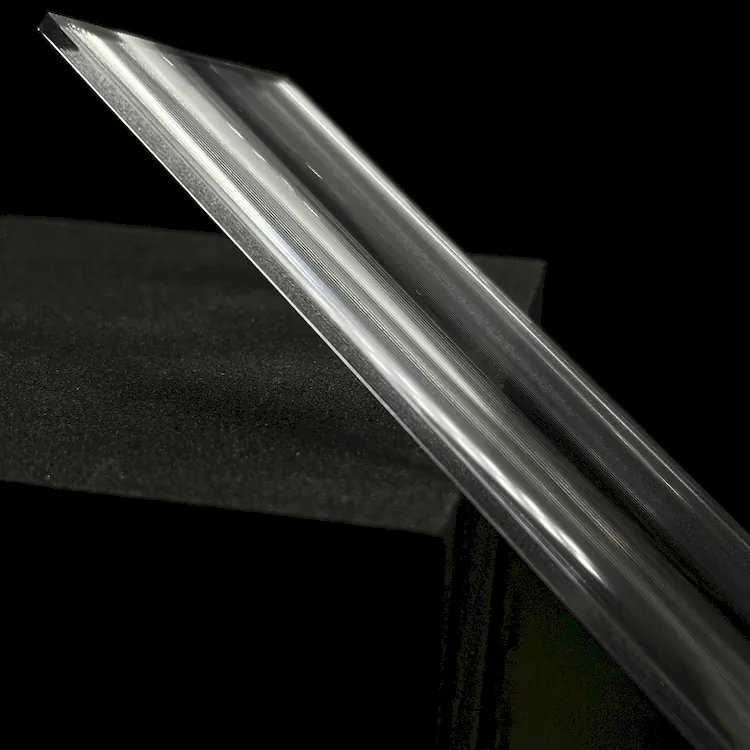

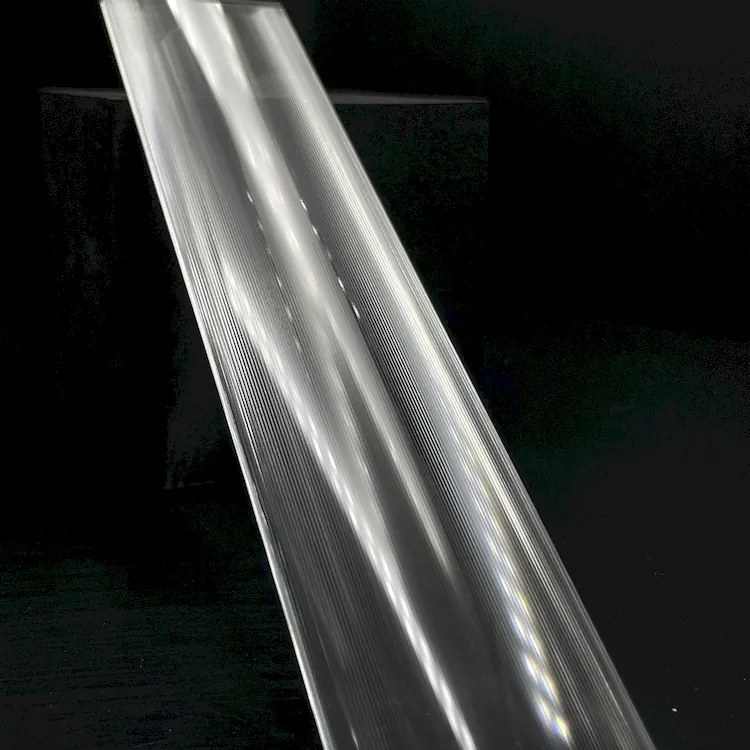

OEM Linear Fresnel Lens Provider F.90mm

Specification

[Product Name] Linear Fresnel Lens

[Brand] Yuying
[Material] Optical-grade PMMA (customizable)
[Dimension] 500x100mm (within 500x100mm any size can be cut)
[Focal Length] 90mm

[Thickness] 2mm

[Groove Pitch] 0.5mm

[Customized] Dimension, Shape, Focal Length, Groove Pitch

[Application] Thin Film Solar Concentrator Systems

Request a Quote

OEM Linear Fresnel Lens Provider | 90mm Focal Length PMMA 500×100mm for Machine Vision Lighting Systems


Compared to traditional optical lenses, Fresnel lenses offer lighter weight and cost efficiency for large-area illumination.


This linear Fresnel lens is designed for machine vision lighting applications, providing precise light shaping and uniform illumination. Manufactured from high-transmittance PMMA, it ensures stable optical performance, lightweight structure, and long-term durability. Ideal for inspection, detection, and industrial automation systems, with full OEM customization available.



Principle & Advantages

Under sunlight, the linear Fresnel lens focuses light into a narrow line, making it ideal for CSP (Concentrating Solar Power) systems. It concentrates sunlight onto a heat transfer tube, which transfers thermal energy to a heat storage system, ultimately enabling solar power generation.


Main Uses

  • Linear solar heat collection
  • Optical viewfinder systems
  • Barcode scanning and recognition





Advantages

Compared to traditional convex lenses, Linear Fresnel Lenses offer the following advantages:

  • Ultra-thin and lightweight design
  • Available in large sizes and customizable shapes
  • Excellent light transmittance and focusing performance
  • Cost-effective and easy to handle

Specifications & Customization

We provide a wide range of sizes and focal lengths for linear Fresnel lenses, cylindrical lenses, and polarizers. We also offer custom design and manufacturing services tailored to specific project requirements.




Application

  • LED Optical Systems: Floodlights, general lighting, landscape lighting, signal lights, wall washers
  • Solar Thermal Collection: Linear concentrators, CSP systems
  • Optical Imaging & Sensing: Viewfinders, barcode scanners, infrared detection


For technical datasheets or custom orders, please feel free to contact us!
