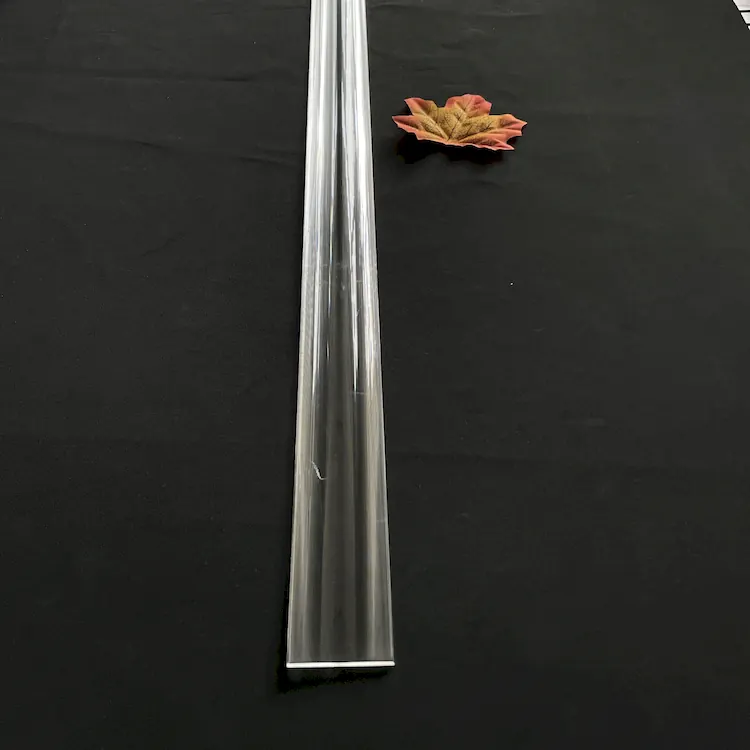

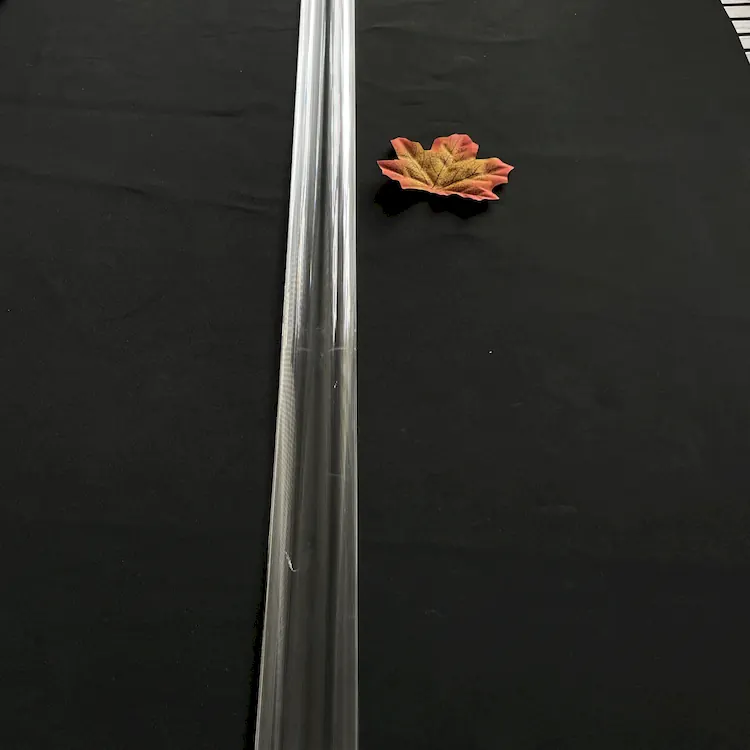

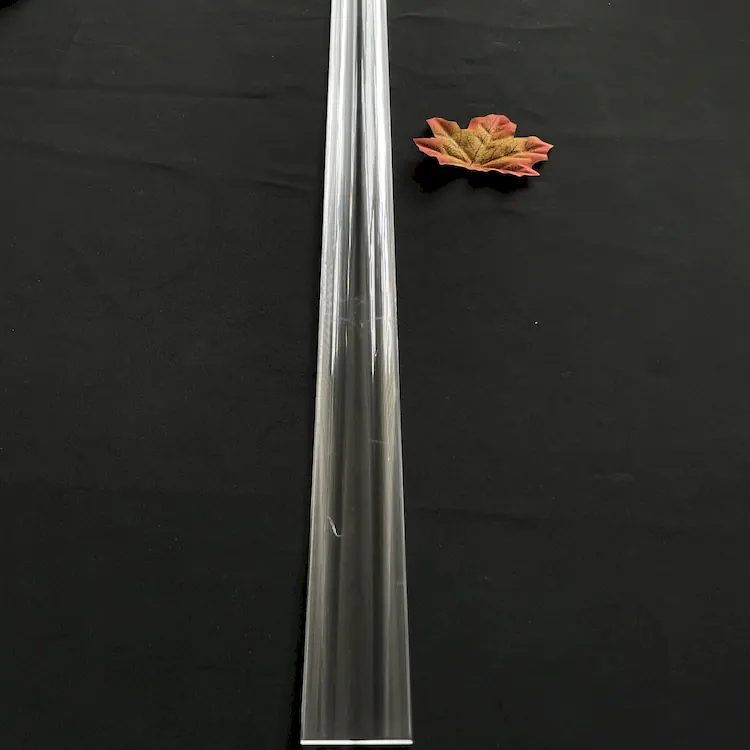

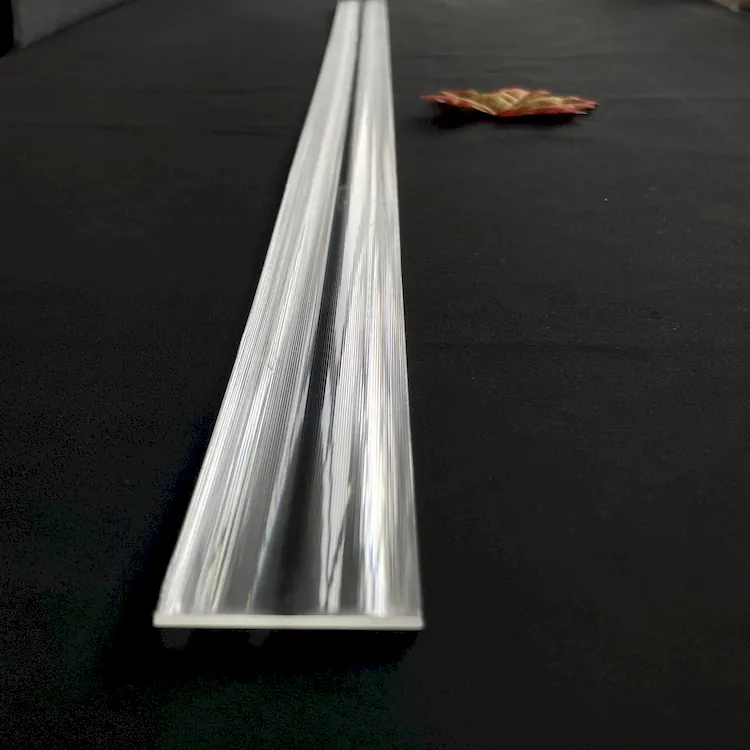

Linear Fresnel Lens for CSP Plants F.100mm

Specification

[Product Name] Linear Fresnel Lens

[Brand] Yuying
[Material] Optical-grade PMMA (customizable)
[Dimension] 600x100mm (within 600x100mm any size can be cut)
[Focal Length] 100mm

[Thickness] 2mm

[Groove Pitch] 0.5mm

[Customized] Dimension, Shape, Focal Length, Groove Pitch

[Application] Concentrated Solar Power (CSP) / Solar Thermal Systems

Request a Quote

Custom Dimension Linear Fresnel Lens for CSP Plants | 100mm Focal Length PMMA 600×100mm for Solar Thermal Concentration


Engineered as an optical solution for next-generation CSP plants and scalable solar thermal infrastructures.


This linear Fresnel lens is engineered for CSP plants, delivering efficient solar concentration and uniform energy distribution. Made from high-transmittance PMMA, it provides excellent optical efficiency, lightweight structure, and long-term durability in outdoor environments. Ideal for solar thermal systems and large-scale renewable energy projects, with full customization options available.


Principle & Advantages

Under sunlight, the linear Fresnel lens focuses light into a narrow line, making it ideal for CSP (Concentrating Solar Power) systems. It concentrates sunlight onto a heat transfer tube, which transfers thermal energy to a heat storage system, ultimately enabling solar power generation.


Main Uses

  • Linear solar heat collection
  • Optical viewfinder systems
  • Barcode scanning and recognition





Advantages


  • High solar concentration efficiency for CSP systems
  • Uniform light distribution for thermal stability
  • Lightweight PMMA for large-area deployment
  • Custom dimensions for project-specific solar layouts


Fresnel Lens vs Traditional Solar Concentrators


  • Lighter weight and easier installation
  • Lower material cost
  • Scalable for large-area solar fields



Specifications & Customization

We provide a wide range of sizes and focal lengths for linear Fresnel lenses, cylindrical lenses, and polarizers. We also offer custom design and manufacturing services tailored to specific project requirements.


Q1: What is a linear Fresnel lens used for in CSP plants?


A linear Fresnel lens is used to concentrate sunlight onto a receiver, improving thermal efficiency in solar power systems.

Q2: Why use PMMA Fresnel lenses in solar energy systems?


PMMA offers high light transmission, lightweight structure, and cost-effective scalability for large solar installations.




Application


  • Concentrated Solar Power (CSP) Plants
  • Solar Thermal Energy Systems
  • Industrial Heat Generation
  • Renewable Energy Projects


For technical datasheets or custom orders, please feel free to contact us!
