How Fresnel Lenses Improve Brightness & Uniformity in Modern Projection Systems | Yuying Optical
In projection technology, achieving high brightness, uniform illumination, and efficient light control is essential. Fresnel lenses have become a core optical component in modern projection systems due to their ability to collimate and focus light while keeping devices lightweight and compact.
Why Fresnel Lenses Matter in Projection?
A Fresnel lens converts divergent light from the light source into parallel beams, significantly improving panel brightness uniformity and reducing the “hot-spot” effect commonly seen in projection displays.
It also works with other optical parts—such as cylindrical lenses or diffuser films—to create a stable and efficient light path.
Key Advantages in Projection Applications
1. Higher Brightness & Better Light Efficiency
By collimating light before it reaches the panel, the Fresnel lens ensures more usable light reaches the projection screen, reducing optical loss.
2. Eliminating Hot-Spot / Solar Spot
Without a Fresnel lens, projectors typically exhibit a bright central spot. A Fresnel structure spreads the light evenly, ensuring balanced luminance from center to edge.
3. Improved Image Uniformity
Uniform illumination enhances clarity, comfort, and overall image stability—especially for large projection surfaces.
4. Efficient Light Collection for Projection Optics
On the panel’s opposite side, Fresnel lenses help collect and direct light into the projection lens group, improving the overall optical throughput.

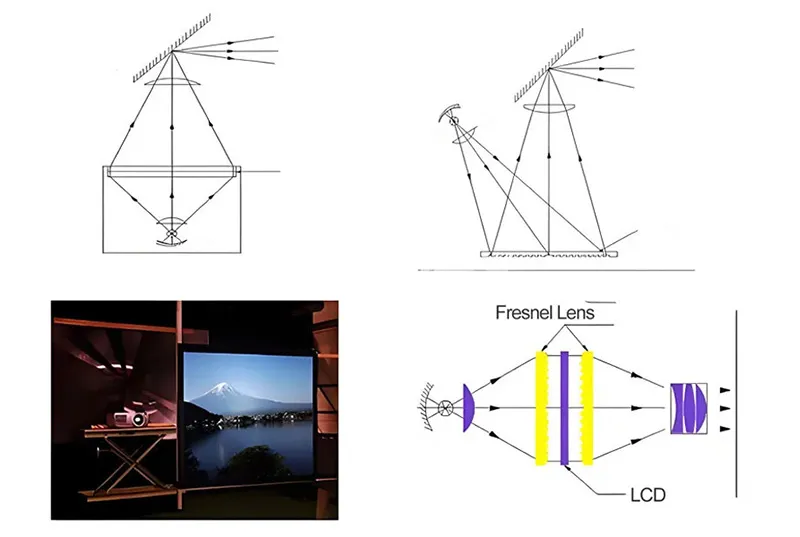

Role in the Projection Optical Engine
A typical projection module includes:- Light source（LED/Laser）
- Fresnel collimating lens
- Display panel（LCD/LCoS）
- Projection lens group
The Fresnel lens sits between the light source and the display panel, ensuring the optical path remains precise and efficient.
Why Choose Yuying Optical for Projection Fresnel Lenses?
Shandong Yuying Optical Instrument Co., Ltd. specializes in Fresnel optics for over 30 + years.
We provide:
- High-transmission HDPE
- Customizable focal length and groove pitch
- Low-distortion, high-uniformity projection-grade Fresnel lenses
- In-house R&D software and fully self-built mold manufacturing
- Annual production capacity near 100 million pieces, with fast lead time and high stability

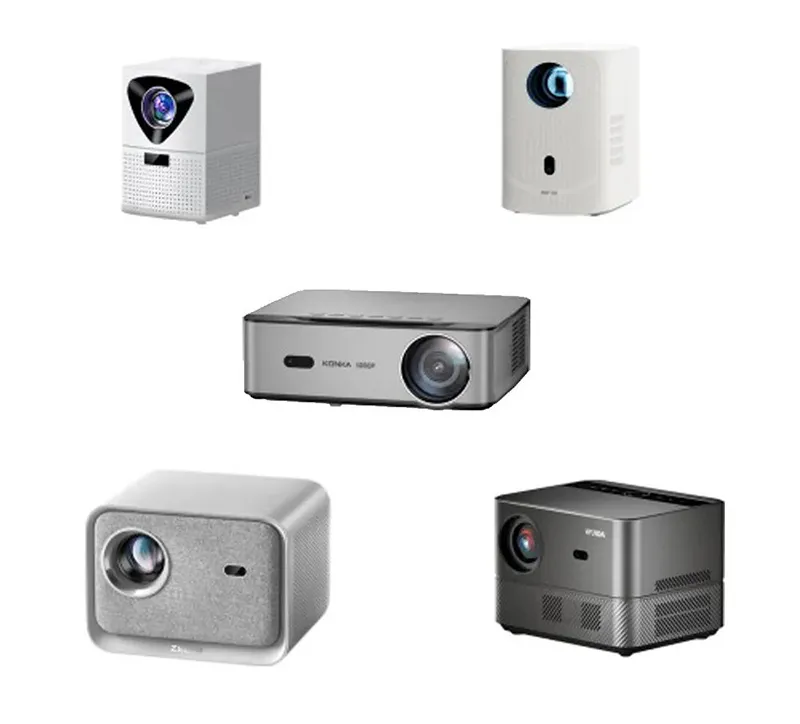

Our lenses are used in projection, imaging, consumer electronics, industrial displays, and global OEM/ODM solutions.
Conclusion
Fresnel lenses play an irreplaceable role in modern projection systems due to their ability to control, collimate, and guide light with exceptional efficiency.
As projection technology evolves, choosing a high-quality, professionally engineered Fresnel lens is essential—and Yuying Optical delivers this with decades of expertise.
Yuying Optical – Where Precision Meets Innovation.
