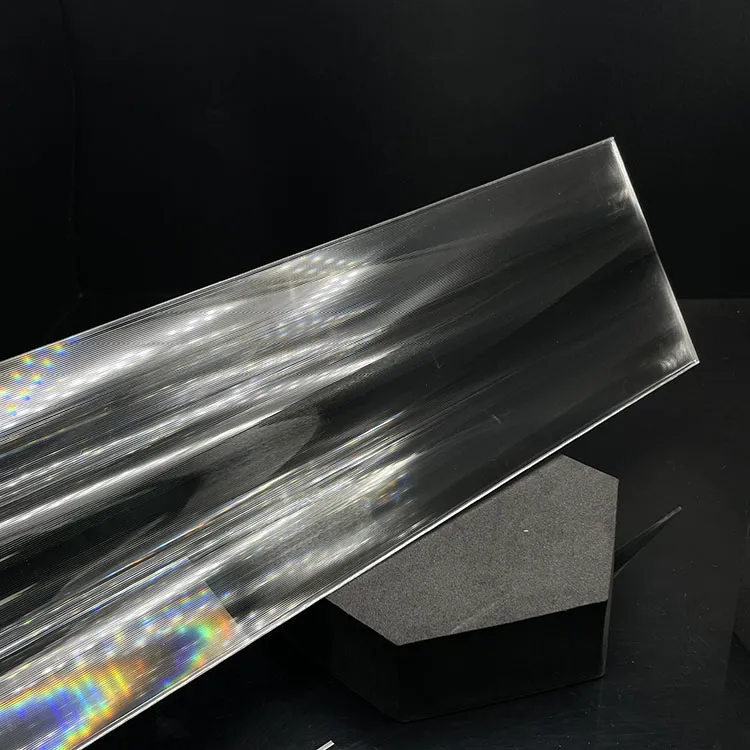

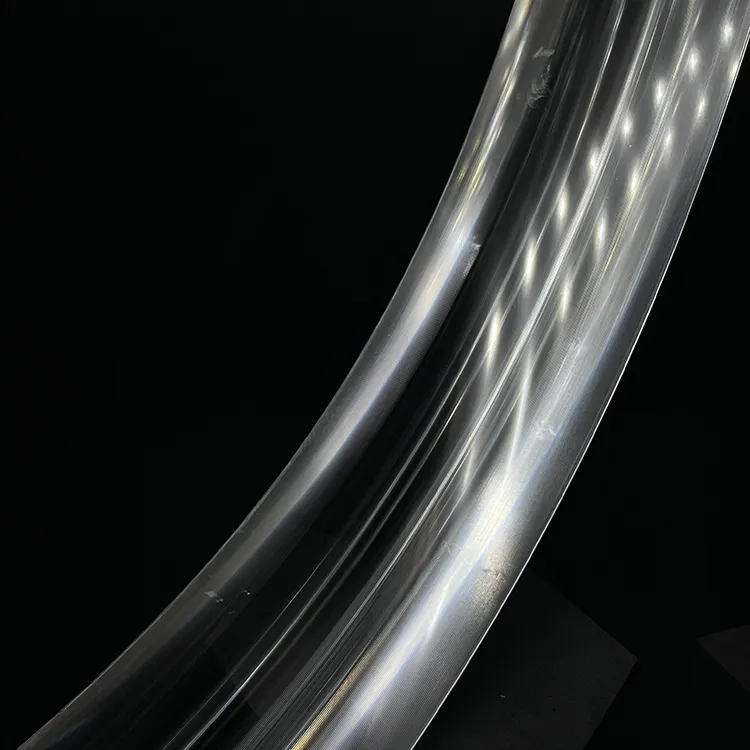

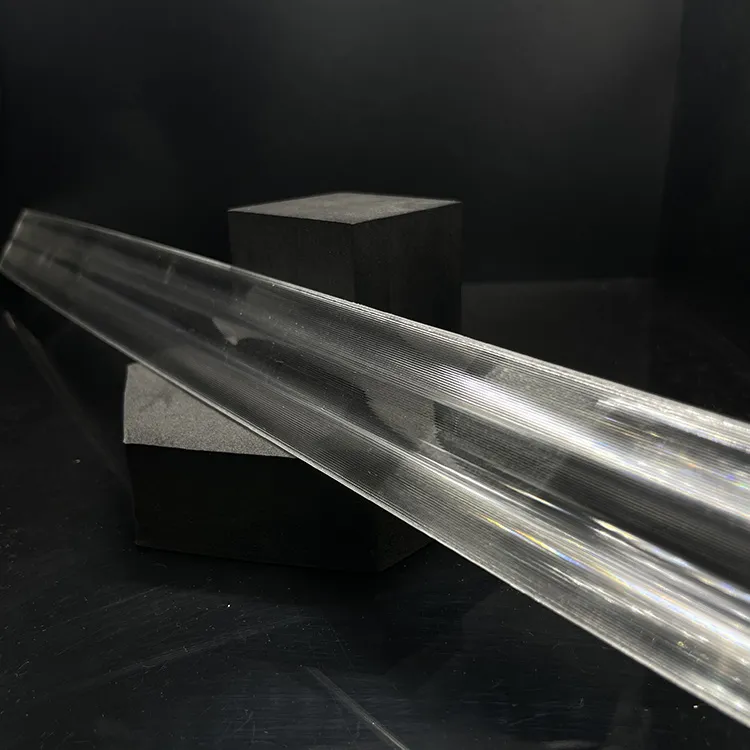

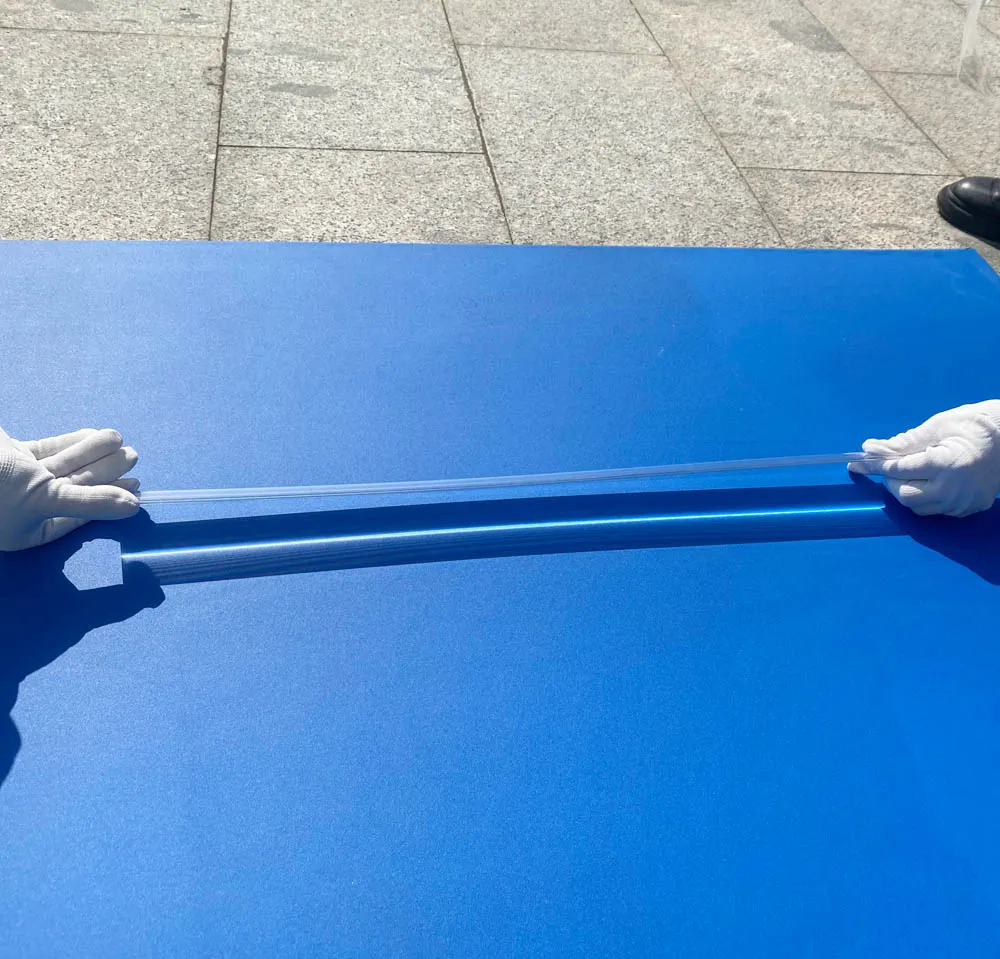

[Product Name] Linear Fresnel Lens
[Brand] Yuying
[Material] Optical-grade PMMA (customizable)
[Dimension] 25x900mm (customizable)
[Focal Length] 10mm
[Thickness] 2mm
[Groove Pitch] 0.3mm
[Customized] Dimension, Shape, Focal Length, Groove Pitch
With the widespread adoption of LED technology, Linear Fresnel Lenses are gaining increasing popularity across various industries, especially in lighting and solar thermal applications.

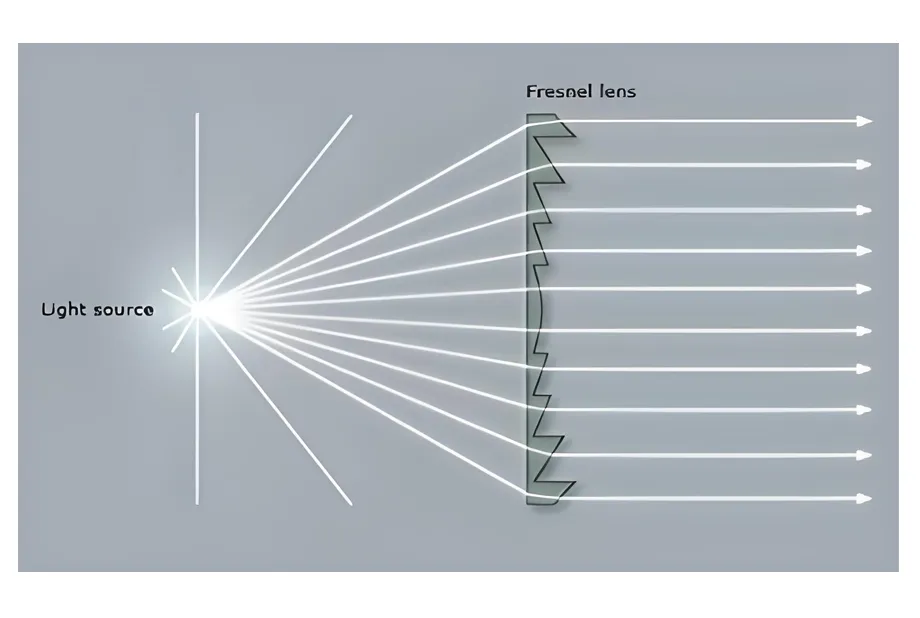

A Linear Fresnel Lens is a specialized type of Fresnel lens composed of a series of prism-like ridges. These ridges vary in width and tilt angle—becoming wider and steeper towards the center—enabling the lens to focus light into a line, rather than a point. This unique linear focusing capability distinguishes it from conventional point-focusing Fresnel lenses.
Principle & Advantages Under sunlight, the linear Fresnel lens focuses light into a narrow line, making it ideal for CSP (Concentrating Solar Power) systems. It concentrates sunlight onto a heat transfer tube, which transfers thermal energy to a heat storage system, ultimately enabling solar power generation. Main Uses
|  |
 | AdvantagesCompared to traditional convex lenses, Linear Fresnel Lenses offer the following advantages:
|
Specifications & Customization We provide a wide range of sizes and focal lengths for linear Fresnel lenses, cylindrical lenses, and polarizers. We also offer custom design and manufacturing services tailored to specific project requirements.
|
Application
|
