Convex Fresnel Lens F.35mm

Specification

[Product Name] LED Fresnel Lens

[Brand] YuYing
[Material] PMMA
[Dimension] 140×115mm
[Focal Length] 35mm
[Groove Pitch] 0.3
[Customized] Diamension, Shape , Focal Length, Groove Pitch etc

Request a Quote

Convex Fresnel Lens for Showcases | Focal 35mm | Custom Size | Low MOQ Factory in Shandong China

The Fresnel lens is used with LED light sources to enhance light efficiency and increase brightness. Compared to traditional lenses, the Fresnel lens offers adjustable focal lengths and light distribution angles, making it suitable for both single and arrayed LED configurations. The lens size and light angle can be customized according to client specifications, helping to reduce mold development costs.

Customized Services

1. High precision: Tip Width (R) ≤ 0.005mm, with loop distance as small as 0.02mm.

2. Molds capacity: We can process lens molds ranging from as small as 1mm to as large as 2200mm in diameter, accommodating a wide variety of specifications.

3. Focus Distance Design: We can design and manufacture lenses with focal lengths as short as 1mm and as long as 10 meters or more, suitable for different application scenarios.

4. Superior Surface Finish: Surface roughness Ra ≤ 0.014μm (14nm), with Ra ≤ 0.002μm achievable within a 150mm diameter, ideal for high-performance applications





Key Features

  • Ultra-Thin Structure: Compared to conventional convex lenses, the Fresnel lens is lighter and more compact, making it easier to install and transport.
  • Large Size Design: Capable of designing large-size lenses to meet the demands of various lighting applications.
  • Adjustable Light Angle: Provides flexibility in adjusting the light distribution angle, reducing mold costs and enhancing application flexibility.
  • High Light Transmission: Effectively transmits light, maximizing efficiency and ensuring even distribution, with extended reach.
  • Precision Machining: Precision machining ensures accurate light transmission, enhancing the overall lighting performance.
  • Cost-Effective: With a more competitive price compared to traditional convex lenses, the Fresnel lens offers high value for money.

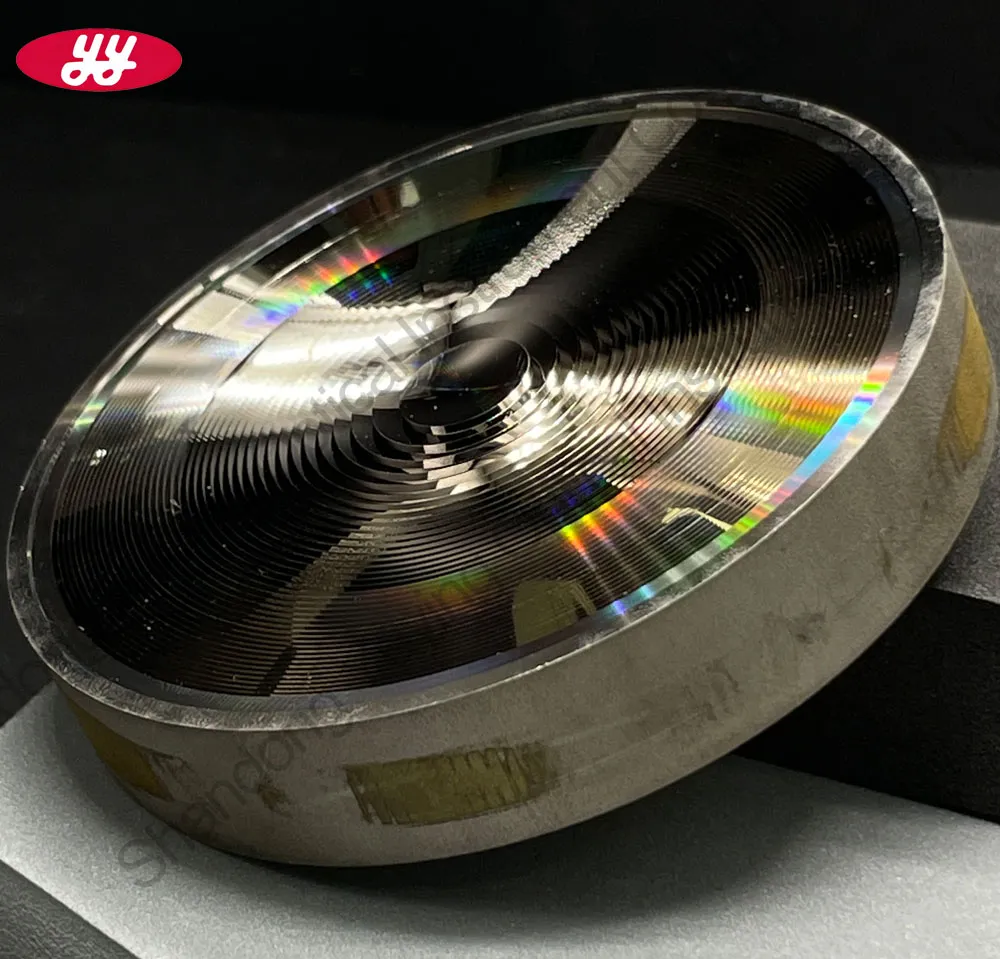

Mold Manufacturing

With over 10+ years of experience in manufacturing infrared sensing lens molds, we guarantee product consistency with design specifications, ensuring the highest level of precision.


We produce nearly 100 million lenses annually, serving well-known brands such as Midea, 3M, and Siemens. This large-scale production capacity ensures product quality and timely delivery.





Applications

Applications: Widely used in LED floodlights, RGB floodlights, landscape lighting, signal lights, wall washers, and various other lighting fixtures.

Extended Applications: Techniques such as sandblasting, faceting, anti-glare coatings, and diffusers can be applied to achieve more uniform and softer light spots, further improving lighting quality.
