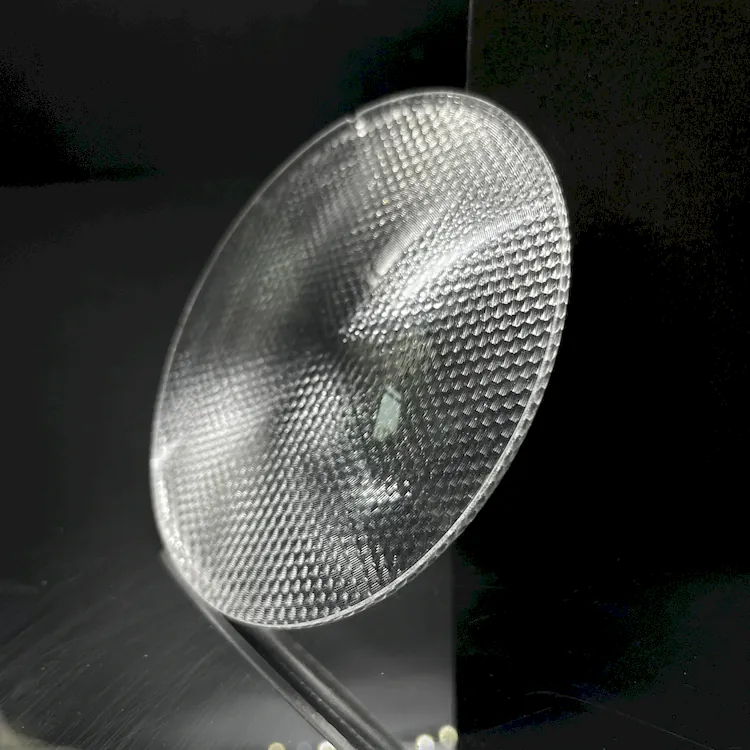

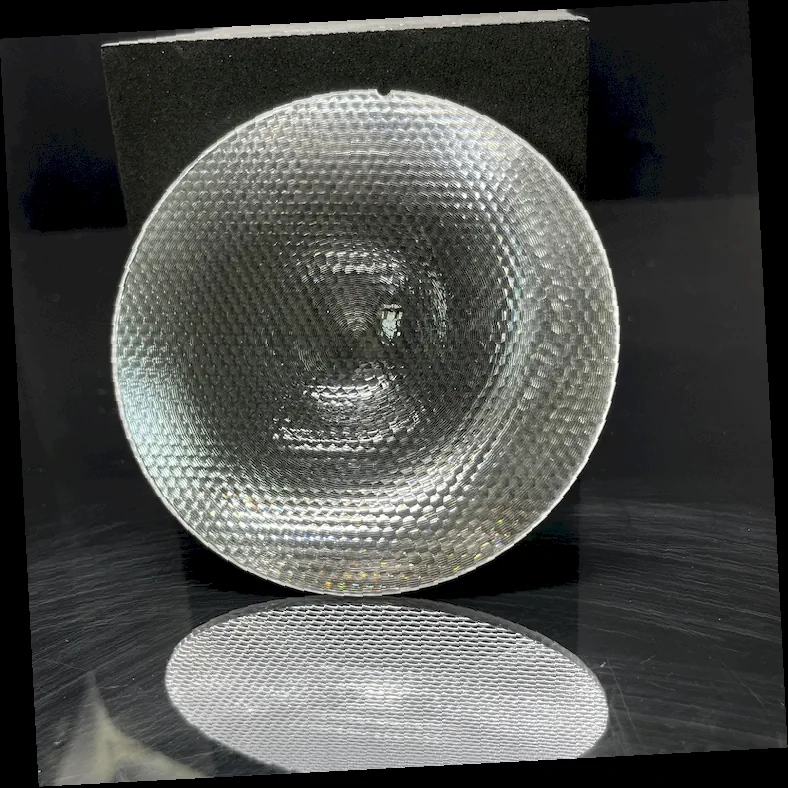

Optical Microstructured Fresnel Lens NO.11-2

Specification

[Product name] Compound Eye Fresnel Lens

[Brand] Yuying

[Model NO] NO.11-2
[Material] PMMA
[Dimensions] Dia.170mm
[Focal Length] 140mm

[Customized] Dimension, Shape, Focal Length, Groove Pitch and more

Request a Quote

Wearable Device Optical Microstructured Fresnel Lens | Custom Size & Focal Length | ISO 9001 China Factory


The Micro-Array Fresnel Lens is a precision optical component designed to converge and homogenize light. It is especially effective in LED lighting applications, where it enhances beam uniformity and softens light output for improved visual performance.

Through advanced micro-structuring, the lens effectively shapes and distributes LED emissions, providing a more even and comfortable illumination experience.

We offer customization options including various focal lengths, micro-array designs, dimensions, and shapes to meet specific optical and mechanical requirements.


Customization Services


We offer comprehensive customization solutions tailored to specific requirements, including but not limited to:

  • Focal Length Adjustment: Optimized for varying projection distances and light concentration needs
  • Micro-Array Optimization: Customized pattern density and structure for specialized applications
  • Dimensions & Shapes: Ultra-large diameters (up to 2000mm), ultra-thin profiles (as low as 0.5mm), and custom-cut geometries (circular, rectangular, or freeform)
  • Material Selection: Optical-grade PMMA, PC, or other polymers with optional UV/weather resistance






Features


  • Ultra-Thin Profile: Ideal for compact and space-constrained applications
  • Large Format Availability: Supports a wide range of coverage areas
  • Lightweight Construction: Easy to handle, transport, and integrate
  • Excellent Light Transmission: Minimizes optical loss
  • Custom Shape Cutting: Tailored solutions for diverse applications
  • Cost-Effective: High performance with competitive pricing


Applications


Commercial LED lighting (downlights, panel lights, stage lighting)

Automotive lighting (DRLs, interior ambient lighting)

Display backlight units (LCD, Mini LED)

Optical sensing & machine vision systems







The Fresnel lens advantages:


For detailed specifications, 3D CAD files, or sample requests, please visit our official website or contact our sales team. We provide end-to-end technical support from prototyping to mass production, ensuring precise optical performance for your applications.


Note: All products comply with ISO 9001 quality standards and include RoHS/REACH certification upon request.
