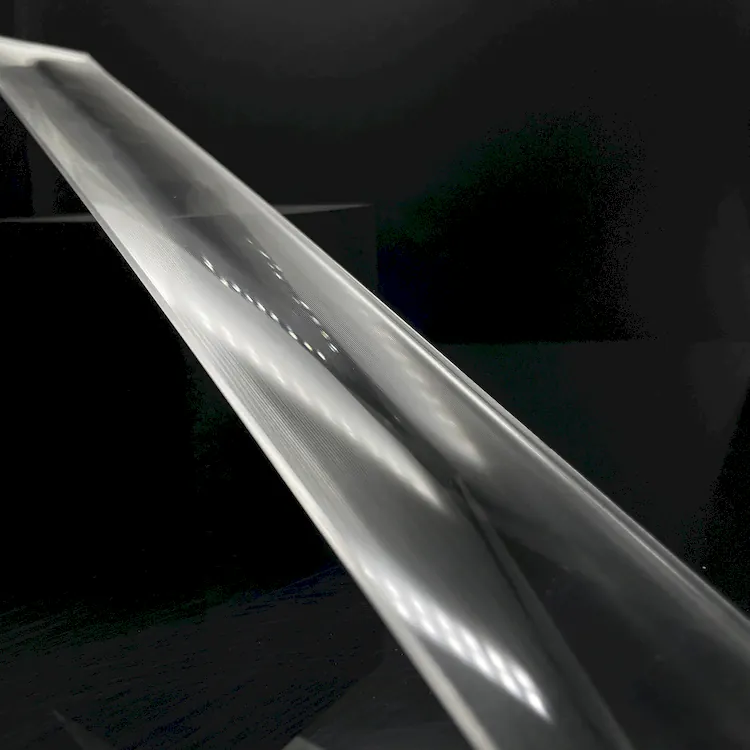

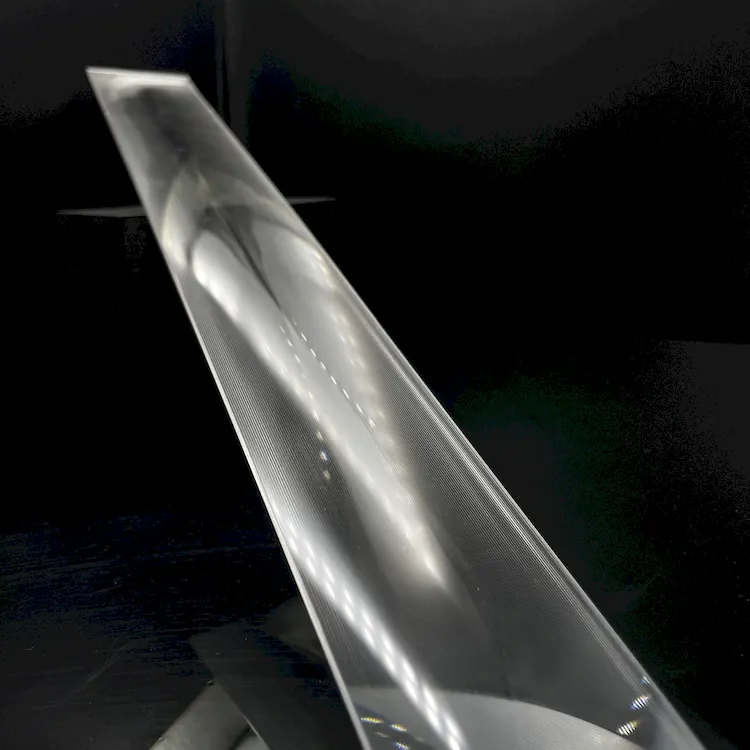

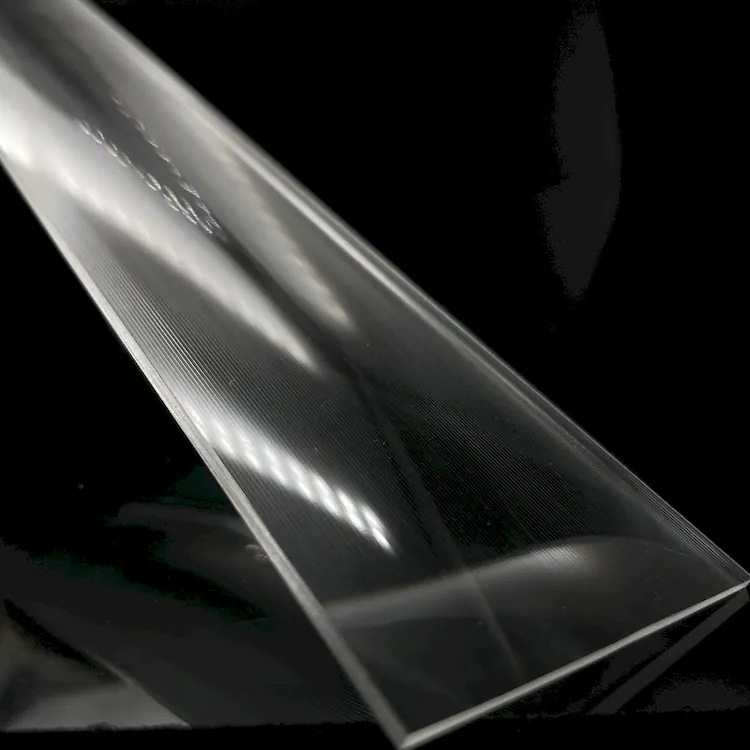

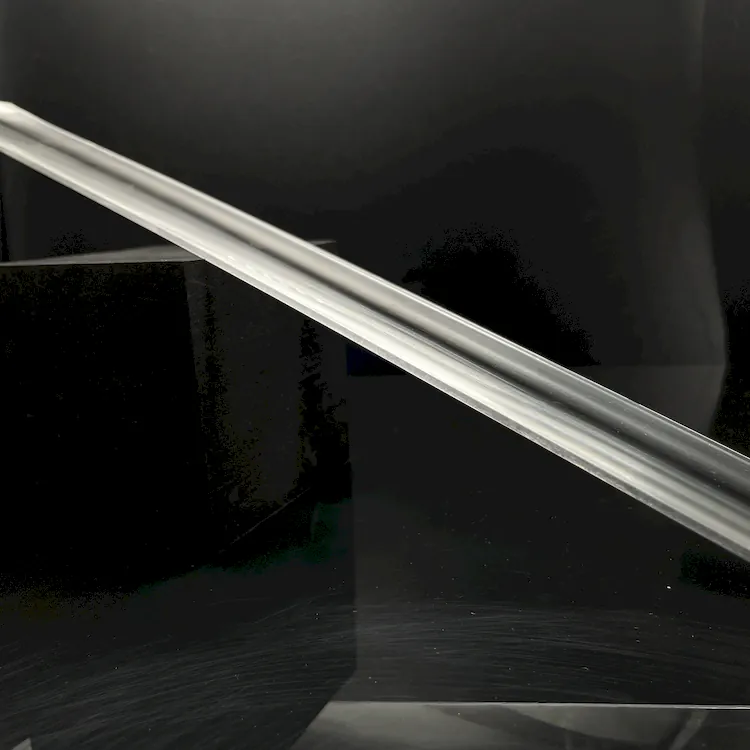

[Product Name] Linear Fresnel Lens
[Brand] Yuying
[Material] Optical-grade PMMA (customizable)
[Dimension] 400x100mm (within 400x100mm any size can be cut)
[Focal Length] 80mm
[Thickness] 2mm
[Groove Pitch] 0.5mm
[Customized] Dimension, Shape, Focal Length, Groove Pitch
[Application] Thin Film Solar Concentrator Systems
This linear Fresnel lens is engineered for thin film solar concentrator applications, offering high light concentration efficiency and uniform energy distribution. Made from high-transmittance PMMA, it ensures durability, lightweight structure, and stable optical performance. Ideal for large-scale solar energy projects, with full customization options including size, focal length, and groove pitch.
Principle & Advantages Under sunlight, the linear Fresnel lens focuses light into a narrow line, making it ideal for CSP (Concentrating Solar Power) systems. It concentrates sunlight onto a heat transfer tube, which transfers thermal energy to a heat storage system, ultimately enabling solar power generation. Main Uses
|  |
 | AdvantagesCompared to traditional convex lenses, Linear Fresnel Lenses offer the following advantages:
|
Specifications & Customization We provide a wide range of sizes and focal lengths for linear Fresnel lenses, cylindrical lenses, and polarizers. We also offer custom design and manufacturing services tailored to specific project requirements.
|
Application
For technical datasheets or custom orders, please feel free to contact us! |
