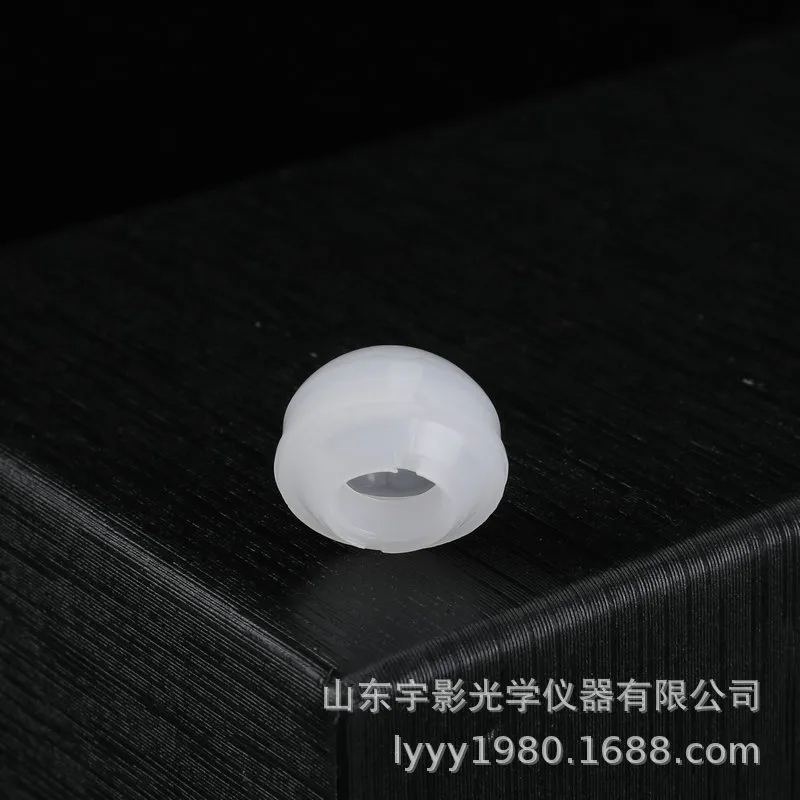

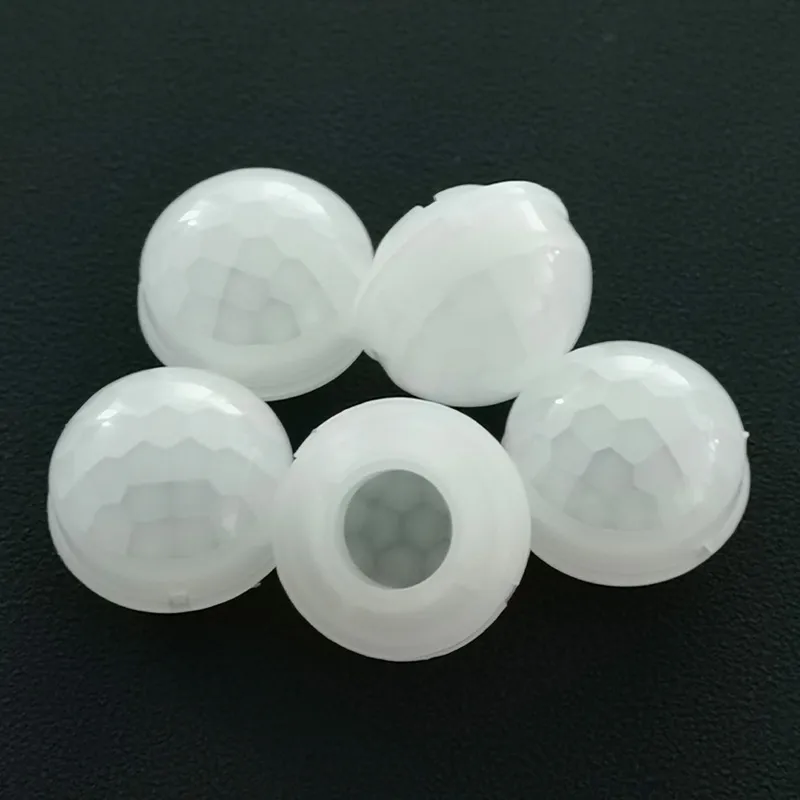

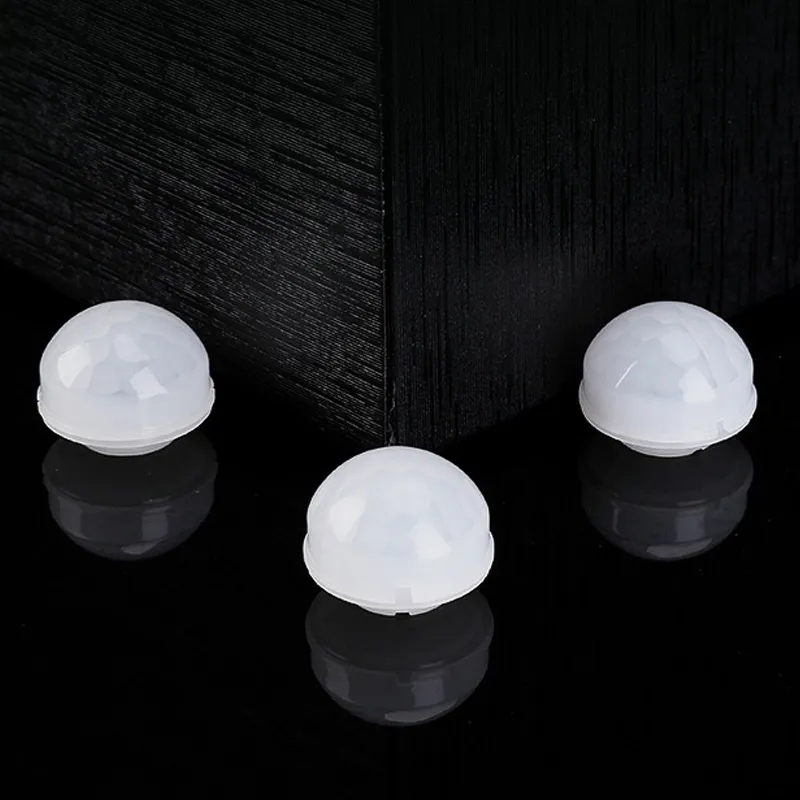

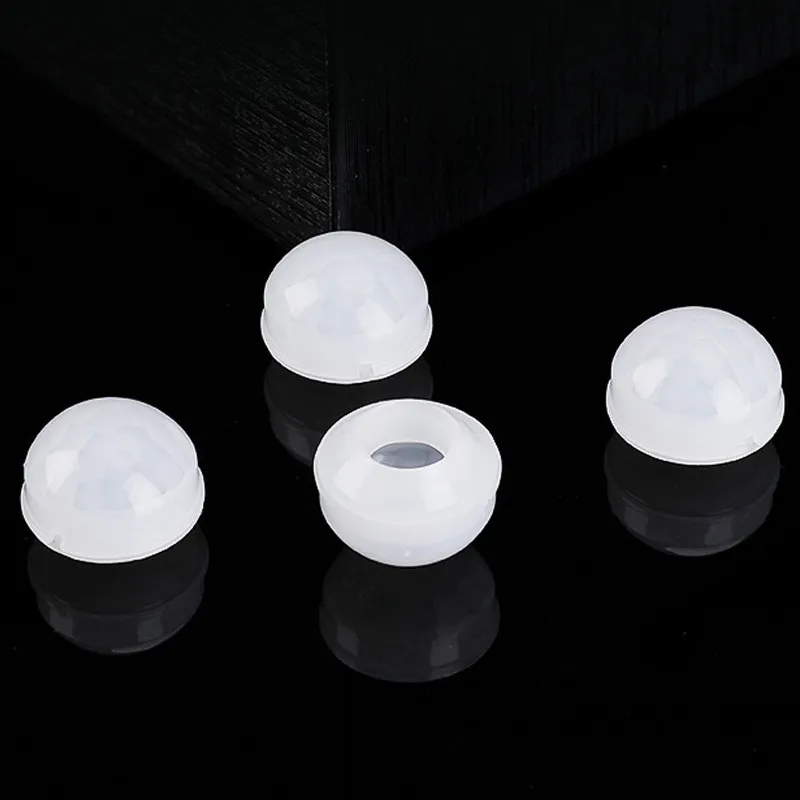

Small PIR Lens for Smart Home Device 018190

Specification

[Product Name] PIR Fresnel Lens

[Model] 018190
[Material] HDPE
[Dimension] Φ17.8 x 13.94
[Focal Length] 9mm
[Sensing Angle] 360°
[Detection Distance] 8M / Radius 6M
[Wall-mounted / ceiling-mounted] 3M
[Color] white, black, customized
[Type] Temperature guns


Request a Quote

Small PIR Lens for Smart Home Device | Sensing Angle 360° | Wall/Ceiling Mounted | 8m Detection Range

Human body infrared sensing Fresnel lenses are key components in infrared sensors, widely used in smart homes, temperature guns, security systems, infrared alarms, motion sensor switches, outdoor cameras, infrared thermometers, infrared imaging, and motion-activated lighting. Their primary function is to focus and regulate infrared radiation to ensure accurate detection.

Customized Services

Yuying offers customized Fresnel lenses based on customer requirements, including different sensing angles, detection distances, sizes, and test ratios. All of our products are made using original molds, preserving the accuracy of the original design and reducing the precision loss and time delays caused by secondary mold changes. New products are typically available for sample delivery within 30 days.





Design & Development

We utilize proprietary infrared sensing design software to meet customer needs with precision. All stages of product development—from design validation, mold processing, testing, production, inspection, to packaging—are carried out internally, ensuring on-time delivery.

Mold Manufacturing

With over 10+ years of experience in manufacturing infrared sensing lens molds, we guarantee product consistency with design specifications, ensuring the highest level of precision.







Mass Production

We produce nearly 100 million lenses annually, serving well-known brands such as Midea, 3M, and Siemens. This large-scale production capacity ensures product quality and timely delivery.
