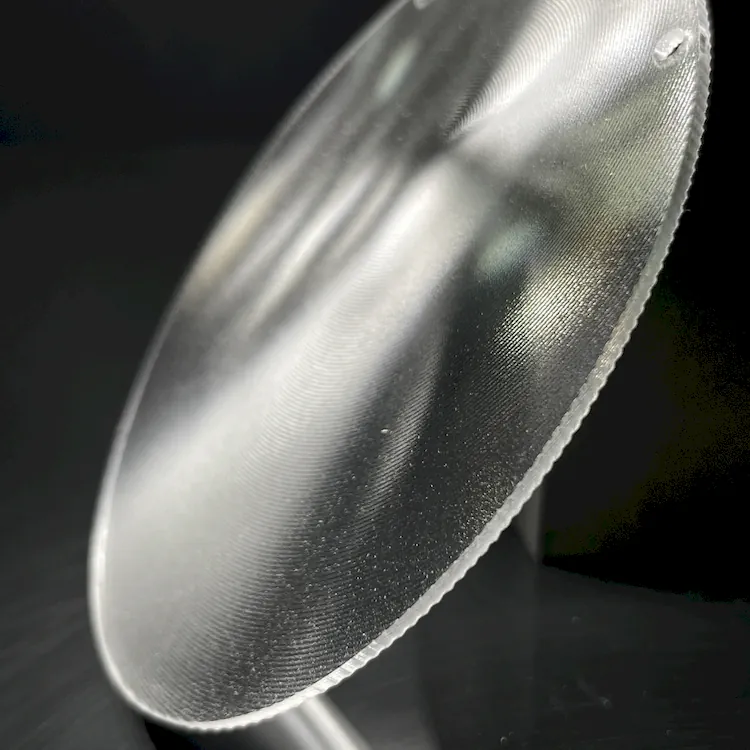

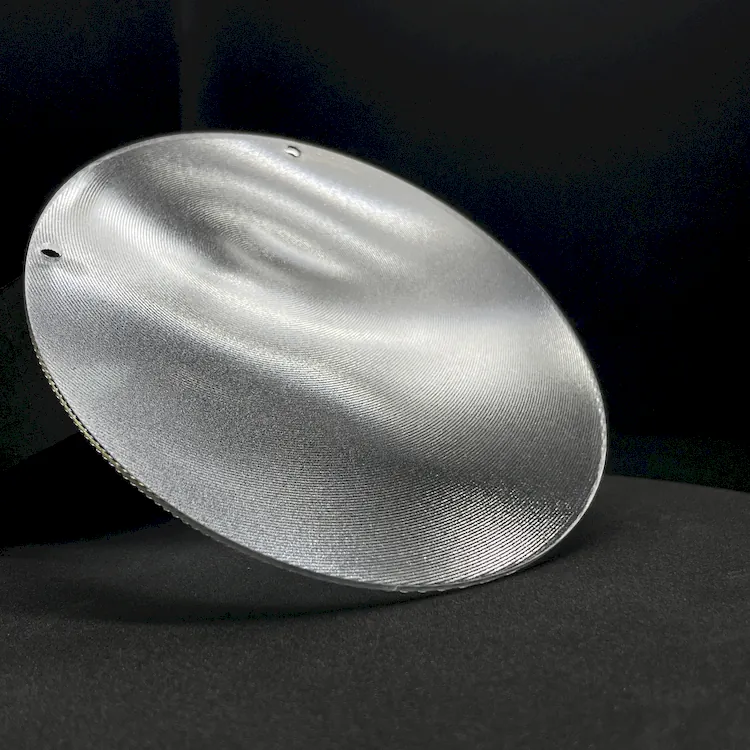

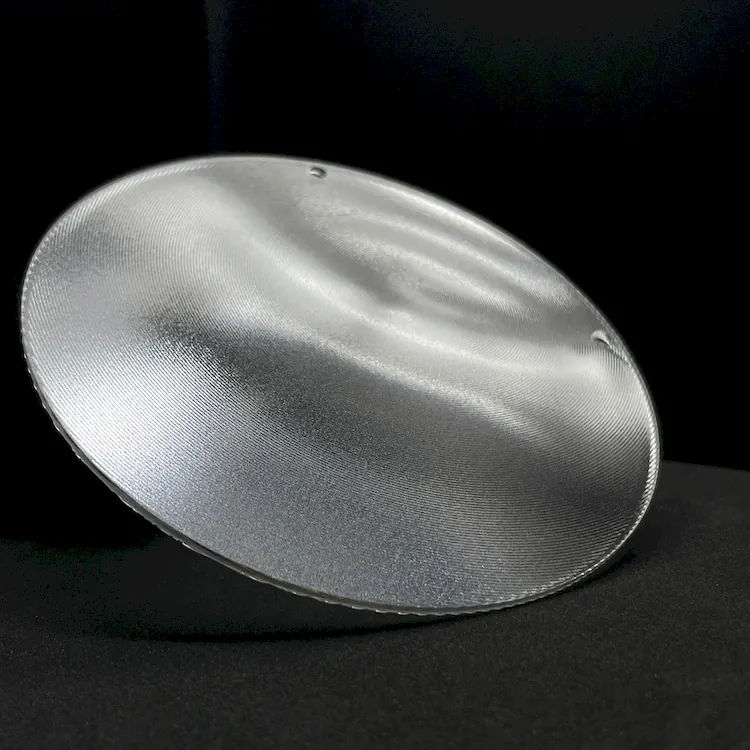

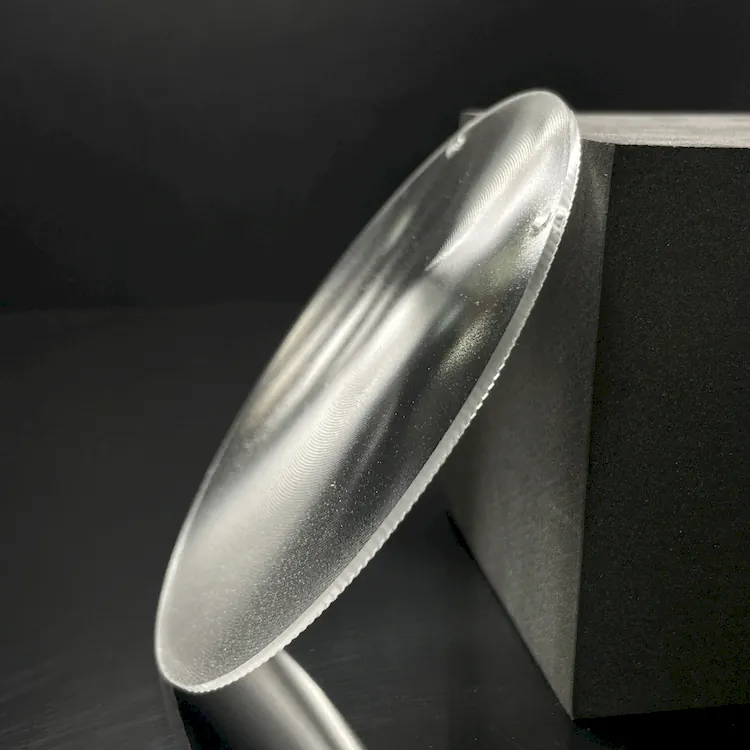

Diffused Fresnel Lens NO.5

Specification

[Product Name] Frosted Fresnel Lens

[Model] NO.5
[Material] PMMA
[Dimension] Dia.214mm
[Focal Length] 185mm
[Customized] Dimension, Shape, Focal Length, Groove Pitch and more


Request a Quote

High Precision Diffused Fresnel Lens | Collimated Light Softening & Display Illumination Enhancer | Optical Diffuser Lens for Custom Applications

The Frosted Fresnel Lens is designed to converge and diffuse light, producing a more uniform and softened lighting effect. It is especially suitable for calibrating LED light output, making it ideal for applications that require soft, glare-free illumination.

Customized Services

We offer fully customizable solutions based on your project requirements:


  • Focal Lengths:Adjustable to suit optical system designs
  • Frosting Levels:From light diffusion to deep matte finish
  • Sizes & Shapes:Tailored to your equipment or housing



Features

  • Ultra-Thin Design: Lightweight and space-saving
  • Large Size Options: Available in wide dimensions for various applications
  • Customizable Shapes: Can be cut into any shape as required
  • High Light Transmission: Maintains optical clarity while softening light
  • Cost-Effective: Affordable pricing with durable quality
  • Portable: Easy to transport and integrate into your product

Applications


  • LED Lighting Systems
  • Optical Diffusers
  • Architectural and Stage Lighting
  • Display Backlighting
  • Solar Concentrators (with frosted effect)








Why Choose Yuying?

With 30+ years of experience in Fresnel lens manufacturing, Yuying provides high-quality optical components trusted by clients worldwide. We support OEM/ODM orders and offer flexible customization to match your product needs.
